SVR Series Solid-State Voltage Stabilisers

Introducing the Claude Lyons® SVR series of electronic solid-state voltage stabilisers – an intelligent, contactless system with no mechanical components. Thanks to the microprocessor control and sensing technology along with fast and accurate true RMS Sensing and robust buck-boost transformer technology, you can achieve stable, efficient and maintenance-free voltage stabilisation without any additional waveform distortion.

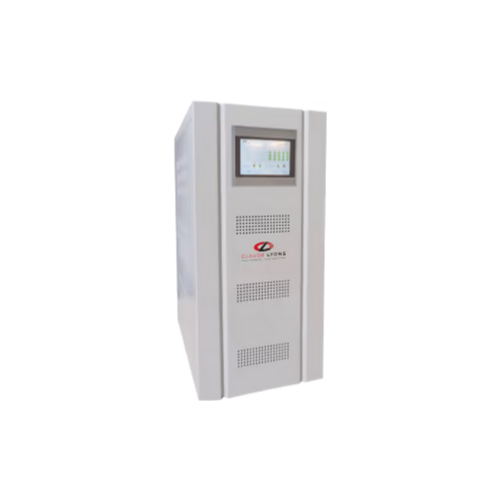

claude lyons svr electronic stabiliser 534x1024
  • Microcomputer and SCR technology for rapid sensing and correction
  • Robust, maintenance-free system
  • Up to +/- 1% output regulation accuracy (+/- 2.5% standard)
  • Standard regulation range +/- 18% (higher range available)
  • True RMS Sensing
  • Independent phase monitoring and control
  • No added waveform distortion
  • LCD display with user-friendly control interface

Minimum Maintenance, Maximum Reliability

The SVR Series was developed and brought to market by Claude Lyons in 2015.  It is rapidly being recognised as the next generation of voltage stabilisation, eliminating the need for regular maintenance.

SVR single and three-phase AC voltage stabilisers are designed so the electronic control system is separate from the main supply path, thereby ensuring a highly reliable design without compromising accurate control.

The SVR series is an EVS solution, utilising a thyristor technology, non-contact, non-moving parts voltage stabiliser system. The SVR range offers outstanding performance, without the need for the regular maintenance required for other systems on the market.

SVR units give you more than 100,000 hours (11 years+) continuous operation without servicing.

Our electronic voltage stabilisers utilise a sophisticated microcomputer control system to continually monitor the supply voltage, sensing at 64 points per cycle, and adjusting the output via fast switching of SCR modules between windings of buck-boost transformers.  These are typically used to maintain the supply to within +/- 2.5% (with 1% available).

SVR Electronic Voltage Stabiliser Close Up

Our electronic voltage stabilisers utilise a sophisticated microcomputer control system to continually monitor the supply voltage, sensing at 64 points per cycle, and adjusting the output via fast switching of SCR modules between windings of buck boost transformers.  These are typically used to maintain the supply to within +/- 2.5% (with 1% available).

We offer a wide range of units available from stock, we can also build to your particular specifications.  Options range from 20kVA to over 3000kVA in both single-phase and three-phase applications, with various input swing options of up to 50%, for input supply voltages up to 450 volts.

Impressive Choice of Features and Optional Extras

SVR systems are housed in bespoke well-ventilated, robust steel cabinets.  Three-phase assemblies comprise of three single-phase stabiliser units, star connected in a single cabinet.  This provides individual correction of each phase, ensuring balance, even with unbalanced supply or load.

We offer a wide range of units available from stock, we can also build to your particular specifications.  We have in-house engineering and design services available to complement our manufacturing facilities, should you require a bespoke solution. Whether your requirement is IP00 to integrate within your existing systems, special enclosure designs or specific customised options, we can offer the solution for you.  Options range from 20kVA to over 3000kVA in both single-phase and three-phase applications, with various input swing options of up to 50%, for input supply voltages up to 450 volts.

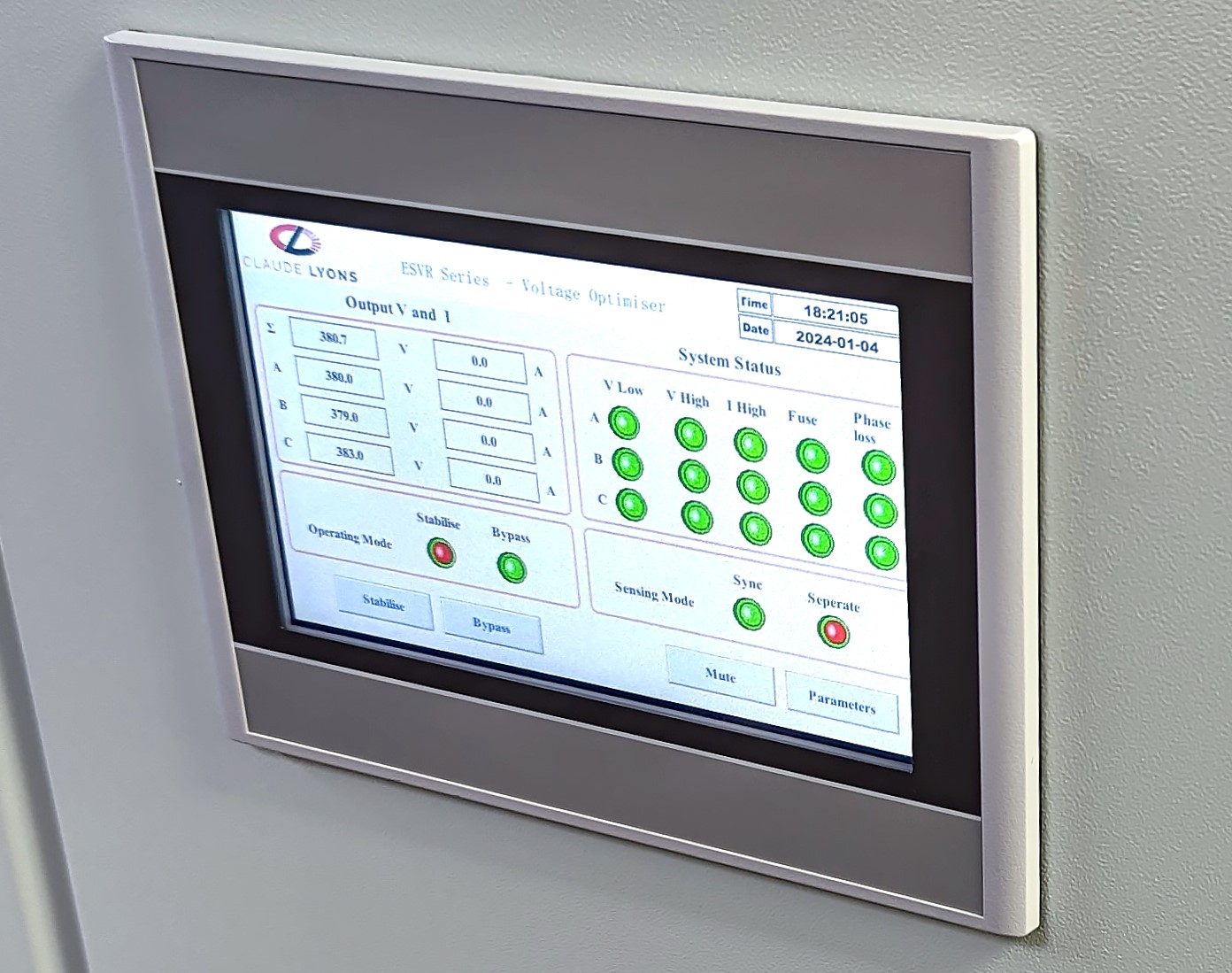

Claude Lyons SVR electronic voltage stabiliser LCD display
Options Available
  • Circuit Breakers  / Fuses
  • Customised enclosures from IP00 to IP54
  • Class II Output Surge Arrestors
  • Metering Options
  • Manual / Automatic Bypass Switch
  • Over and Under Voltage / Frequency Relay
  • Class I Input Surge Arrestors / Lightning Protection
  • Remote Monitoring & Alarms
  • Remote Sensing
  • Isolation Transformer
  • Noise, Spike and Transient Protection
